Hoymiles P1 Meter
Hoymiles P1 Meter
Early Black Friday Sale!
15% Off Sitewide with Code: BF15
0% VAT in Germany only. For other countries, please check VAT Rate by Country
Please check compatibility before purchasing. If unsure, contact our support team.
Features at a Glance
Features at a Glance
Quick RJ12 Connection
DSMR 4.X & 5.0 Support
Real-Time Energy Monitoring
1-Second Data Sampling
Reliable P1 Communication
Wi-Fi & Bluetooth Connectivity
Our Service
Our Service
High Warranty Standards
Free shipping in Germany (3-7 days)
Secure and easy payment
Lifetime customer service
Couldn't load pickup availability
- Fast Shipping
- 30-Day Money Back Gaurantee
- 30-Day Price Guarantee
- Easy & Secure Payment

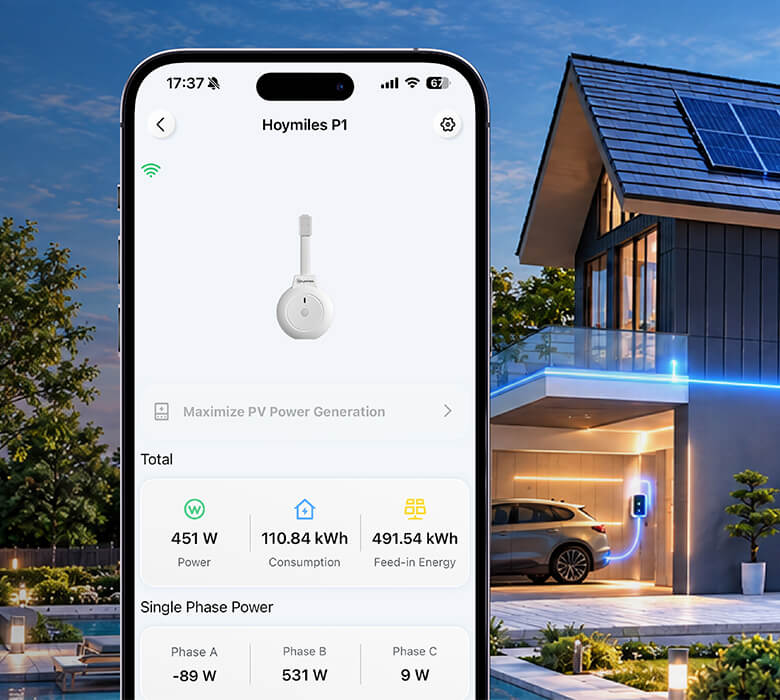

Monitor Your Home Energy in Real Time
The Hoymiles P1 Smart Meter reads real-time energy data directly from your smart meter via the P1 port and sends it to the S-miles App. Track your household consumption, grid feed-in, and PV power generation for smarter energy management.
Compatible Smart Meter Models
The P1 meter is verified compatible with the following smart meter models; In addition, the P1 meter is also compatible with any DSMR 4.x/5.0 single-phase and three-phase smart meters.

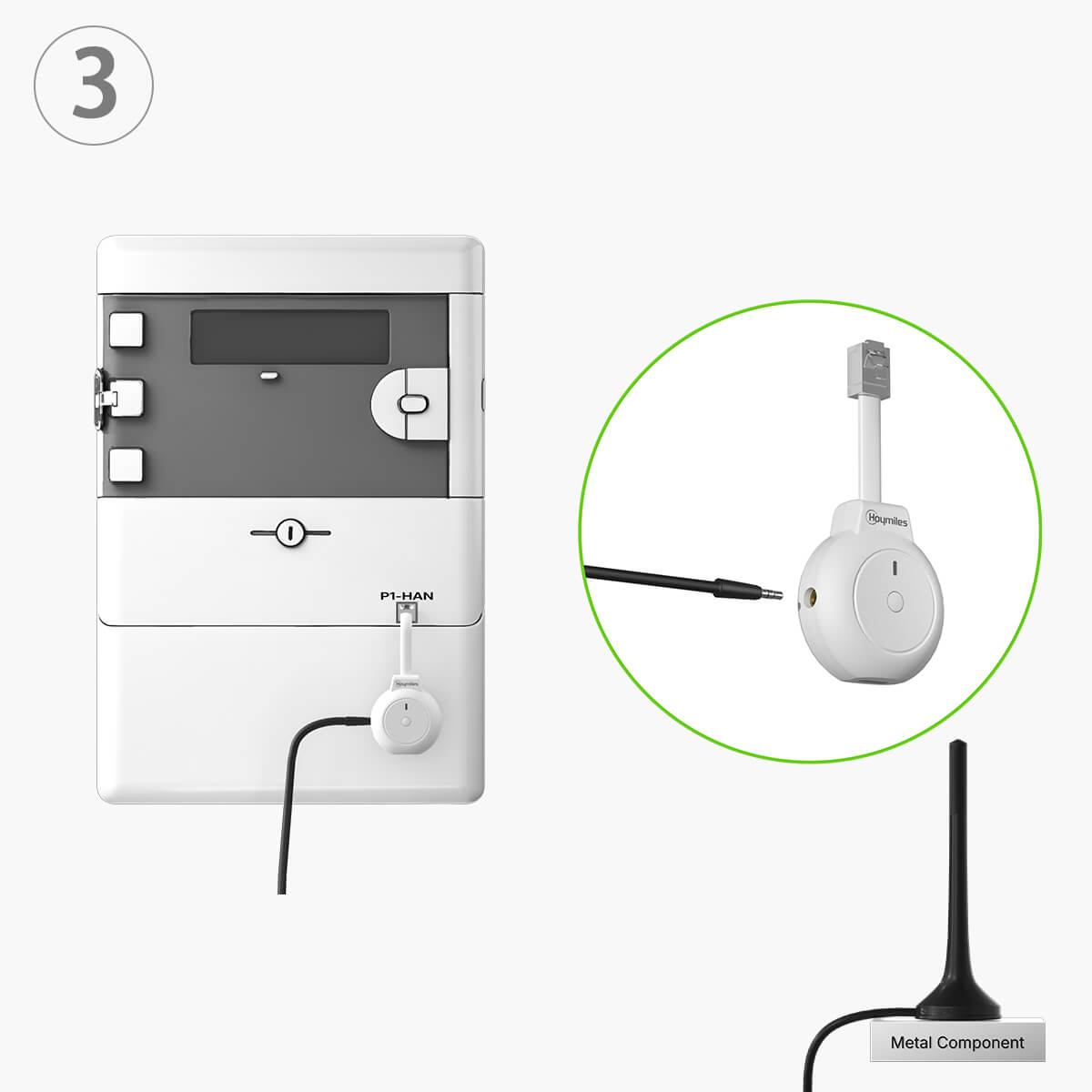

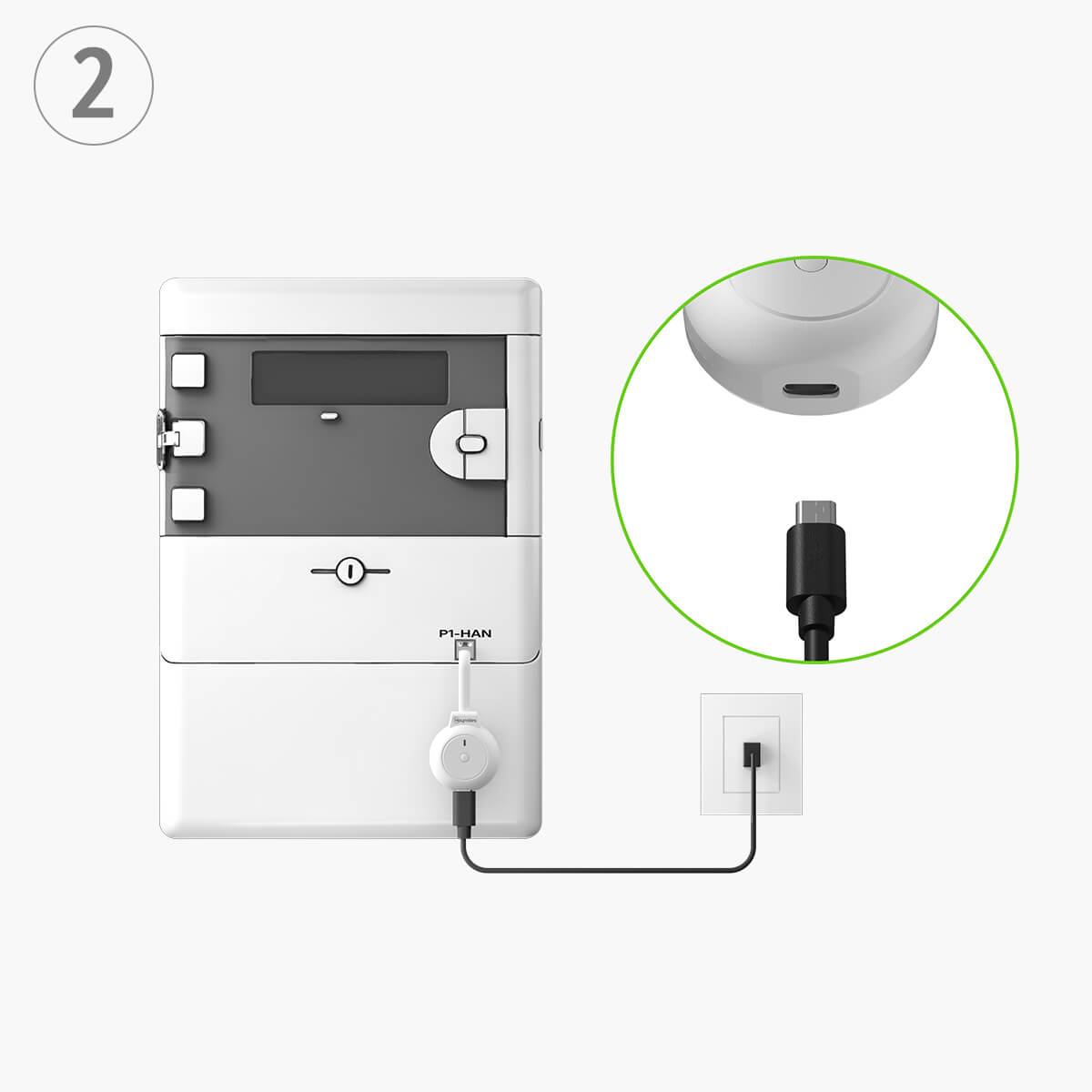

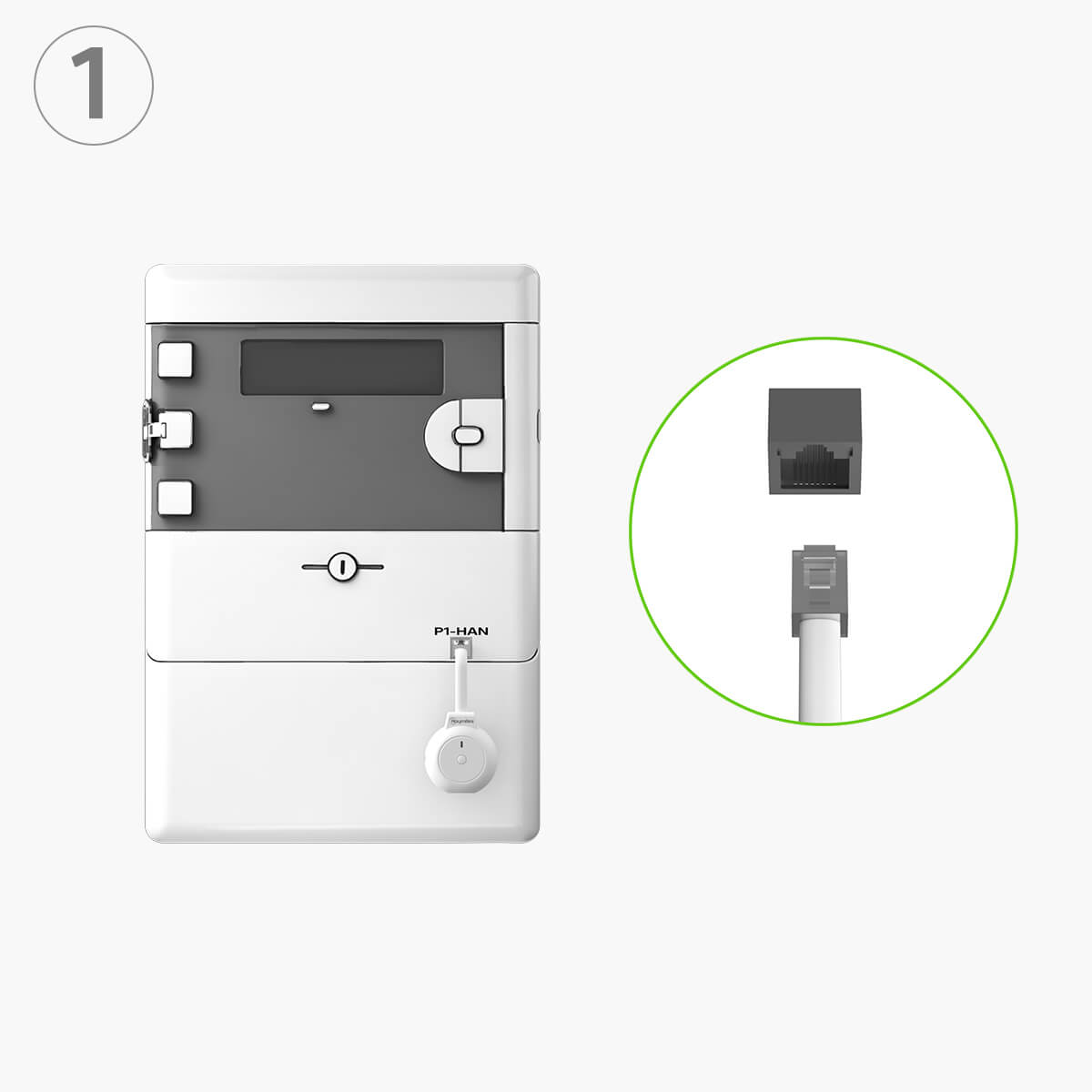

Accessory Installation
More About Our Product
| Specification | Details |
|---|---|
| Compatibility | Works with DSMR 4.x/5.0 single-phase and three-phase smart meters |
| Communication method | Wi-Fi |
| Interface | RJ12 |
| Wi-Fi range | 30m (Indoor) ; 50m (Outdoor) |
| Bluetooth protocol | Bluetooth 5.0 |
| Weight | 22g |
| Working temperature range | -25 to +55 °C |
| Working humidity range | ≤ 85% RH (No condensing) |
| Enclosure rating | IP20 (Indoor) |
Frequently Asked Questions
Which smart meters are compatible with the Hoymiles P1 Meter?
The Hoymiles P1 Meter has been verified as compatible with the following smart meter models:
- ISKRA AM550-TD2
- Landis E360
- SAGEMCOM S210
- SAGEMCOM T210-D
- SAGEMCOM XS210
- SICONIA T211
- SICONIA S211
- SICONIA SAGEMCOM XT211
- KAIFA MA304
- KAIFA MA105
In addition, the P1 Meter supports single-phase and three-phase smart meters using DSMR 4.x/5.0 protocols.
Note: Encrypted P1 data is currently not supported.
Does the Hoymiles P1 Meter support encrypted smart meter data?
Currently, the Hoymiles P1 Meter does not support encrypted P1 data or the entry of decryption codes. It can only read unencrypted data from compatible smart meters.
Is the P1 Smart Meter easy to install?
Yes. The P1 Smart Meter is designed for quick and easy installation. Simply connect it to the compatible P1 port and configure it through the Hoymiles App
Does the P1 Smart Meter work with all smart meters?
Compatibility depends on whether the household smart meter provides a compatible P1 interface. Please check the smart meter specifications or contact your electricity provider if you are unsure.
Can I install the P1 Smart Meter myself?
The P1 Smart Meter is designed for simple connection to a compatible P1 interface. However, installation requirements may vary by country and local regulations. Please follow the product manual and local requirements.
