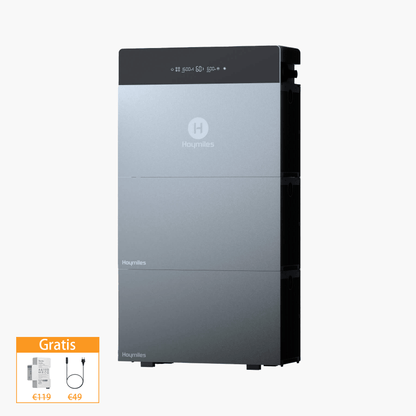

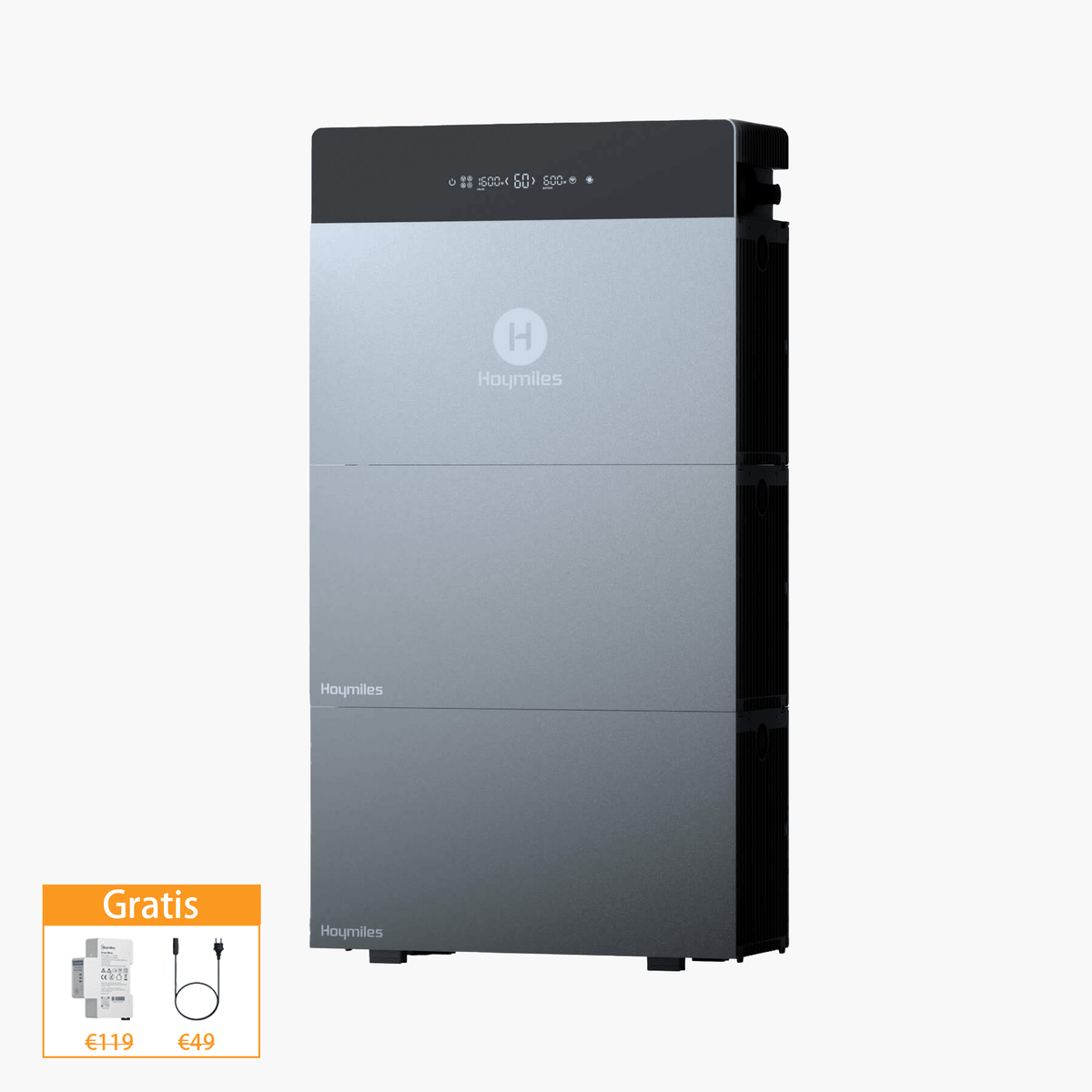

HiBattery 4020 X Solar Battery
HiBattery 4020 X Solar Battery
Get Extra 10% Off with Code: HBNEW
0% VAT in Germany only. For other countries, please check VAT Rate by Country
4020 X and 4020 AC will be shipped within 1â3 business days. Battery modules are expected to ship starting September 18.
Features at a Glance
Features at a Glance
Plug-and-play design
4.02kWh capacity, up to 16.08kWh
10-year quality warranty
Max. 2500W output power
Max. 4000W PV Input (4 MPPT)
AI smart TOU mode
Couldn't load pickup availability
Feature Highlights

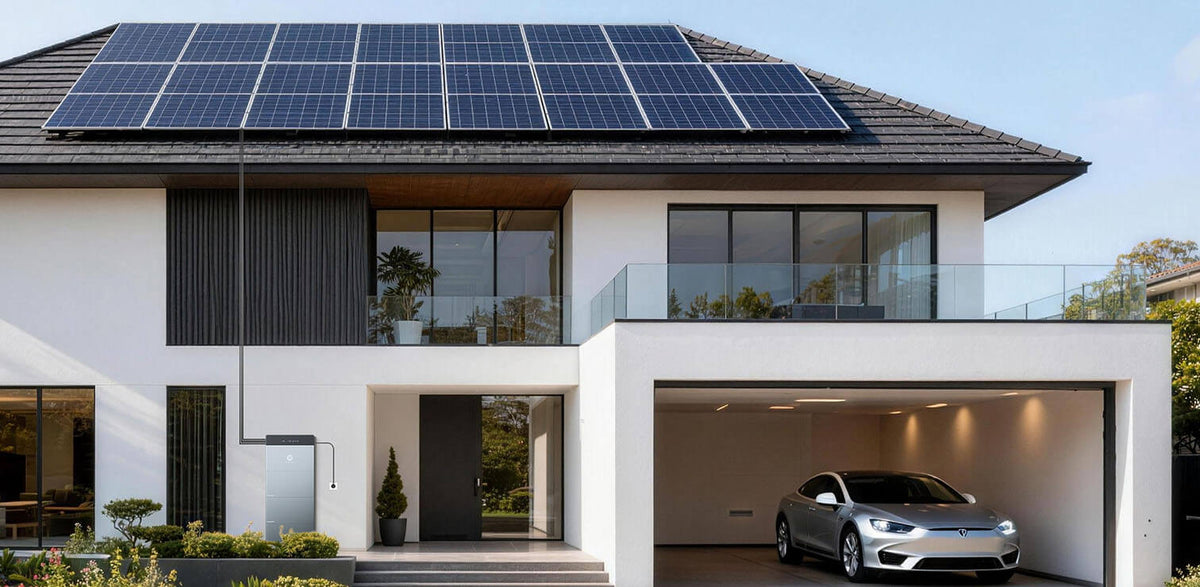

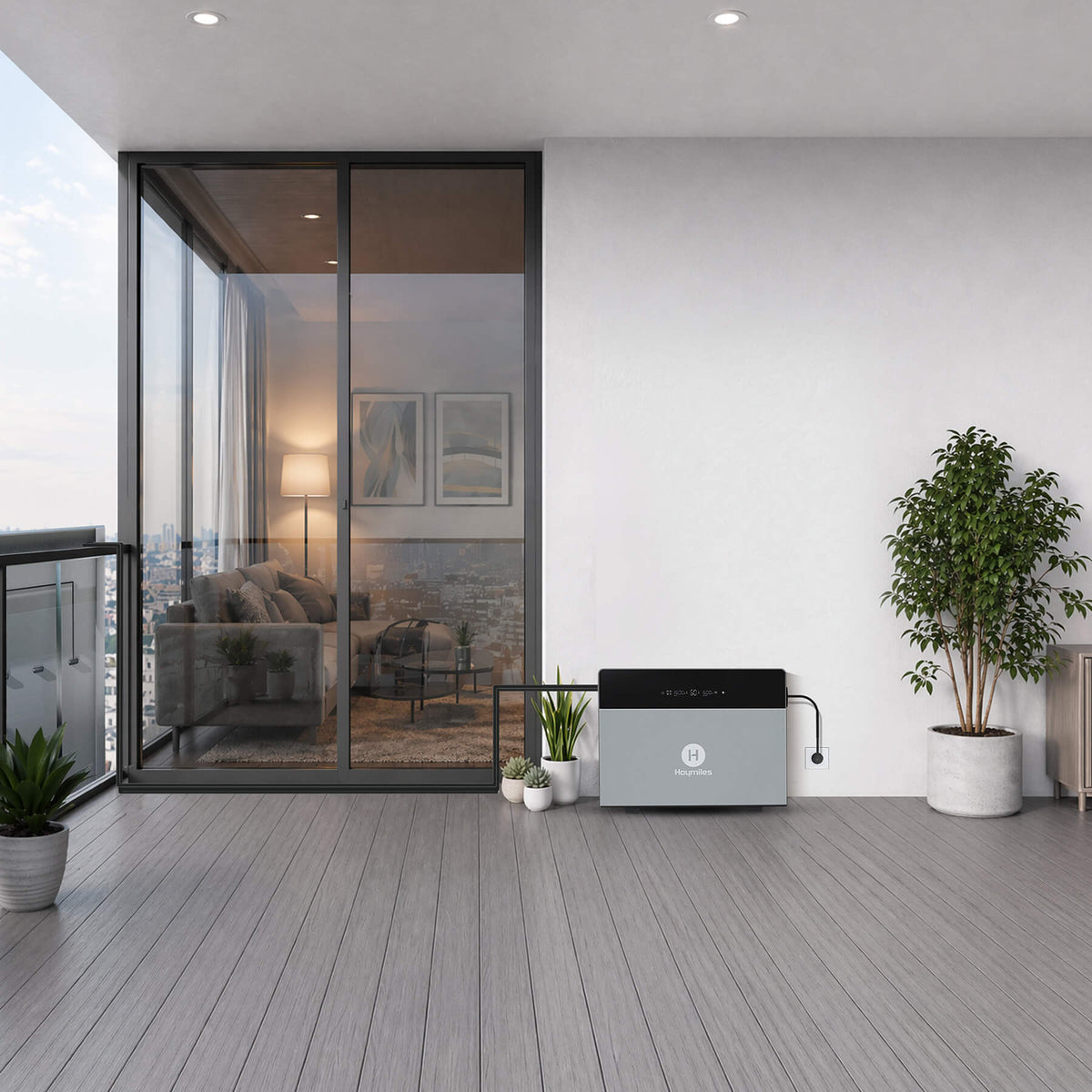

Easy Solar Energy Storage for Every Home

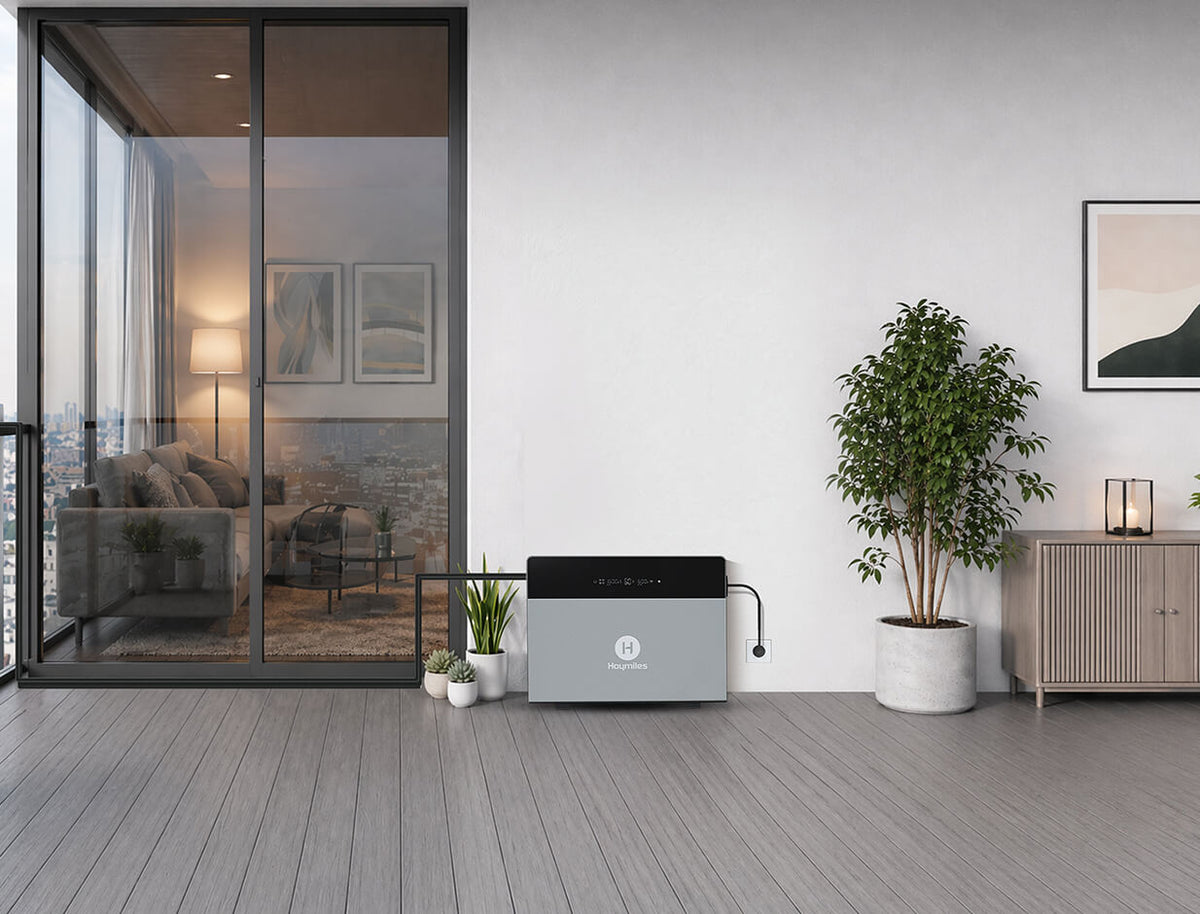

1*HiBattery 4020 X
For Normal Solar System (4*500W Panels)
Ideal for studio flats or 1â2 person households. Powers essential devices overnight.
battery capacity
Annual Generation
max. annual savings
Annual Usage

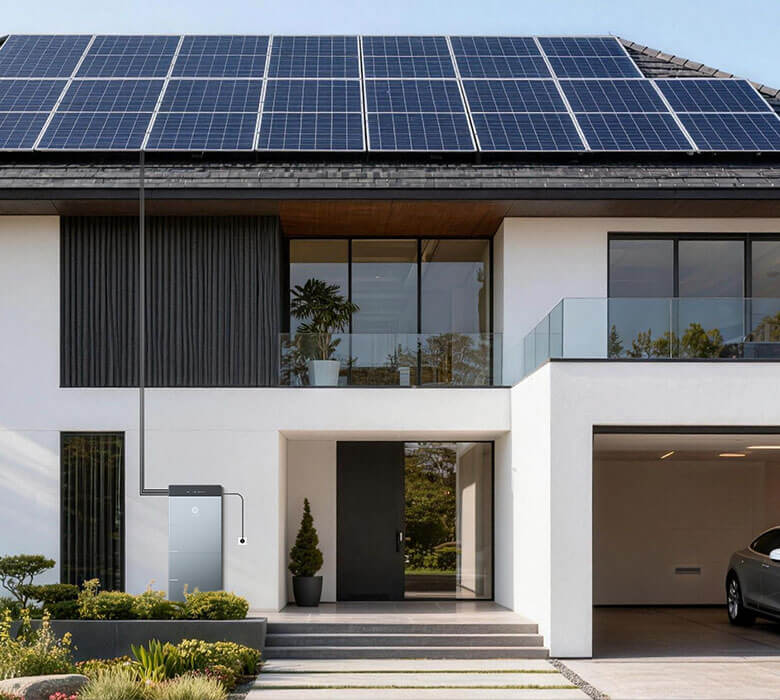

1*HiBattery 4020 X + 2~3*Battery Modules
For Premium Solar System (8*500W Panels)
Ideal for families of 3â4 in a semi-detached or larger home.
battery capacity
Annual Generation
max. annual savings
Annual Usage
With a 4020 X unit and 4Ă500W PV modules, it generates ~2,378 kWh/year (â5.96 kWh/day). Up to 30% is used directly and up to 90% self-consumption is achieved, saving about âŹ856/year at âŹ0.40/kWh.
*Estimated savings are for reference only. Actual results may vary based on electricity rates, usage patterns and local policies.
Reliable Performance, Built to Last
Hoymiles AI-EMS for Extra 15% Revenue Boost
Hoymiles AI-EMS is a smart energy management system that optimizes solar generation, storage, and usage in real time. Using AI-driven TOU optimization and load shifting, it maximizes self-consumption and energy value. This helps improve system efficiency and can deliver up to a 15% revenue boost by using energy at the most valuable times.
HiBattery 4020 X
Multiple Systems for Ultimate Safety
Built on a Dual-MCU architecture with an independent bidirectional DC/DC module, HiBattery 4020 X provides intelligent monitoring and 48 layers of electrical protection for voltage, current, and temperature. An integrated fire extinguisher and pressure relief valve enhance safety, while automatic SOC balancing simplifies battery replacement and expansion, reducing both setup time and costs.
HiBattery 4020 X

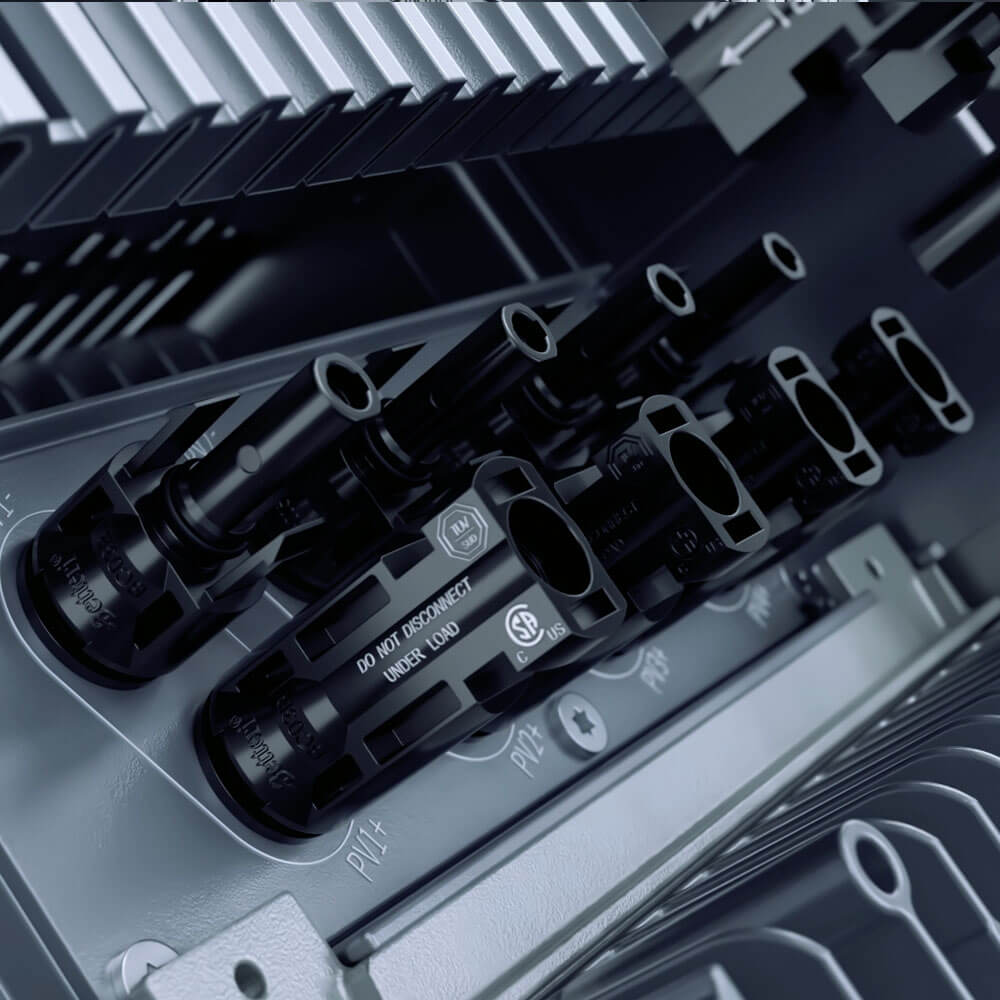

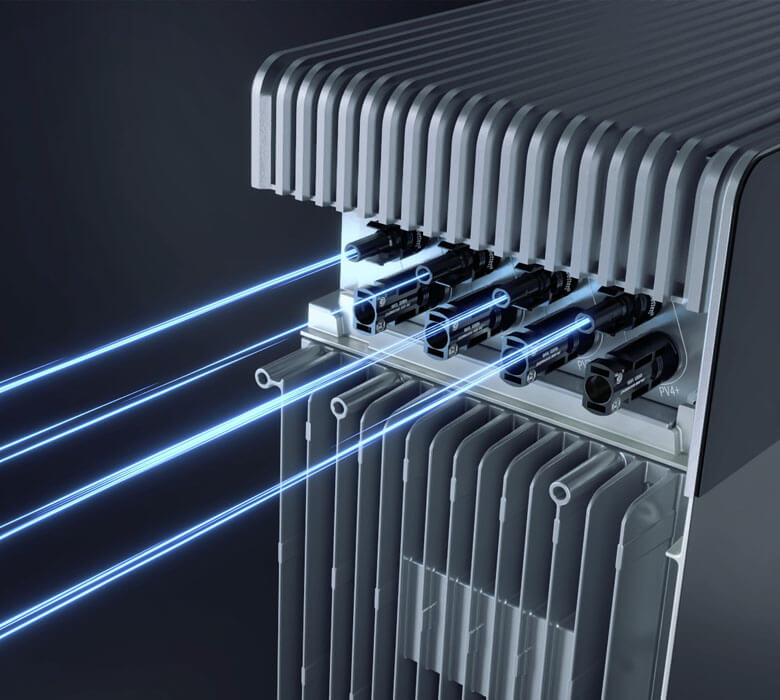

4000W Solar Input Power
HiBattery 4020 X supports up to 4000W solar input through four independent MPPTs, allowing each PV string to operate at peak efficiency. Whether your panels face east, west, south, or experience partial shading, the system intelligently optimizes power generation to maximize self-consumption and reduce grid dependence.
HiBattery 4020 X
Exceptional Battery Longevity
Built with automotive-grade LiFePO4 cells, the system offers 8,000+ charge cycles and a 15+ year lifespan, delivering exceptional durability and stable, consistent performance over time. Its long service life helps reduce replacement costs and ensures a strong return on investment, making it a reliable choice for long-term energy storage.

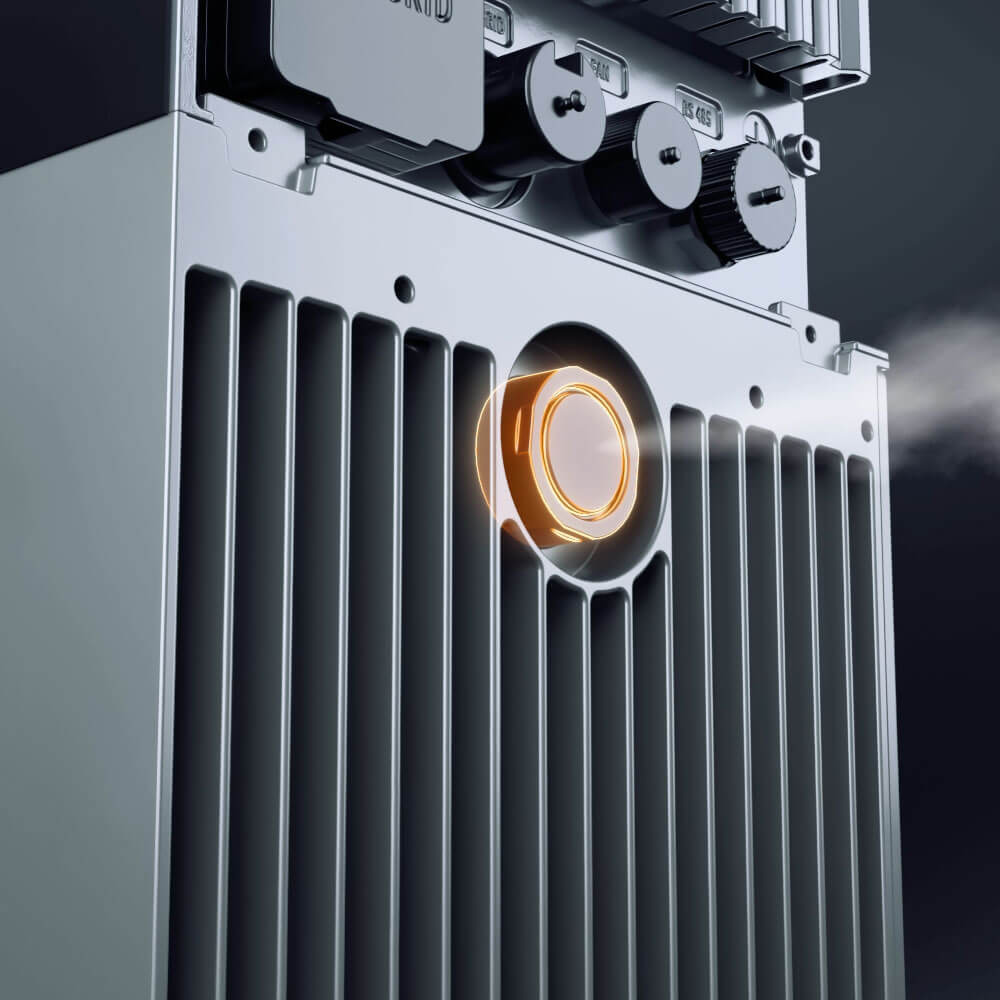

Stable Output in Any Environment
HiBattery 4020 X ensures reliable performance with IP66 protection. In summer, thermal conductive potting, large cooling fins, and CFD-optimized design improve heat dissipation with optional fan cooling. In winter, below 0°C, self-heating activates automatically to maintain optimal battery conditions and stable operation from -20°C to 55°C year-round.
Set Up With No Worry

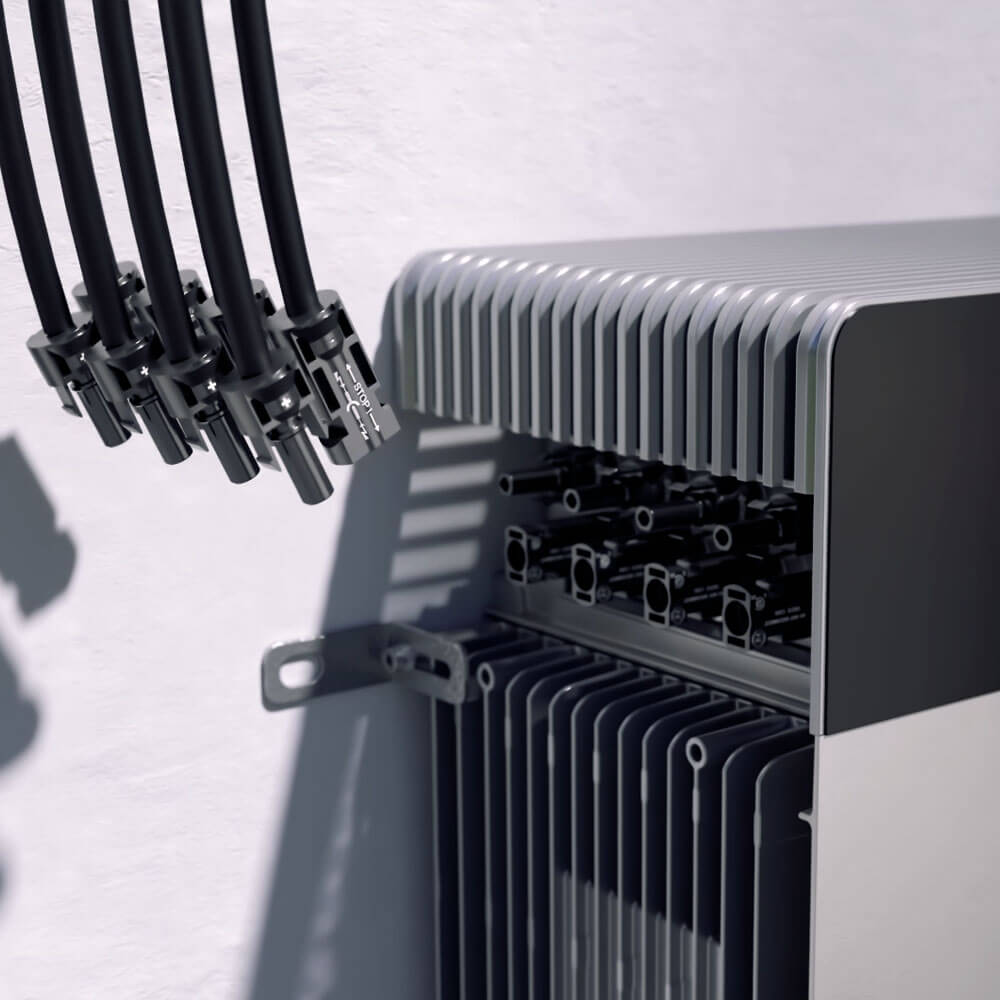

Plug-and-Play Installation
The HiBattery 4020 X features a plug-and-play design that connects directly to PV modules, eliminating the need for complex wiring or additional equipment. With a streamlined installation process, you can get your solar energy storage system up and running quickly, saving both time and installation costs.
installation fee

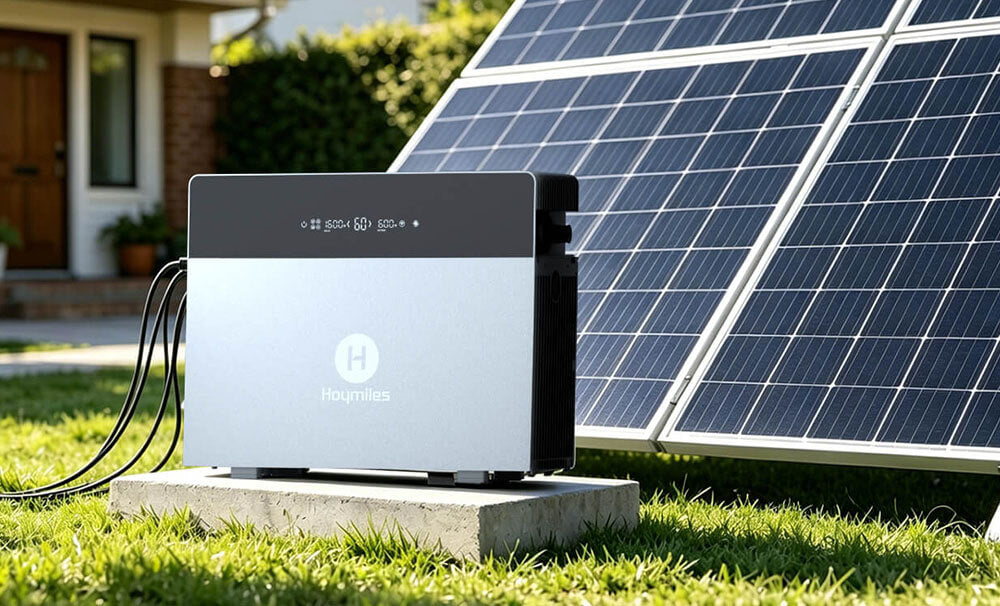

100% Compatibility
Designed for maximum flexibility, the HiBattery 4020 X can be plugged into any standard household socket and installed wherever power is needed. It also connects directly to virtually all mainstream solar panels, making it easy to integrate into both new and existing solar setups without complicated modifications.
compatible with solar systems
Installation Support Service
We provide professional support to ensure a smooth installation and seamless user experience. Our expert team is available via email, online chat, and phone to guide you step by stepâfrom setup to everyday useâhelping you get the most out of your system with confidence. Have any questions?
support service
More About Our Product
| Specification | Details |
|---|---|
| Battery Capacity | 4.02kWh |
| PV input power | 1000W Ă 4 |
| On-Grid Port | Max Input Power | 2500W |
| On-Grid Port | Max Output Power | 800W (Plug-in) / 2500W (Hardwired) |
| On-Grid Port | Rated output power | 800W |
| Off-Grid Port | Max Input Power | 2500W |
| Off-Grid Port | Max Output Power | 2500W |
| Max Charge and Discharge Power | 2000W |
| Operation Voltage Range | 16-60V DC |
| Max PV Input Current | 32A x 4 |
| Battery Type | LiFePO4 |
| Life Cycles | â„8000@70% SOH |
| Operating Temperature | -20 to 55â |
| Weight | 42kg |
| Dimensions | 520 Ă 384 Ă 199mm |
| Warranty | 10 years |
| Ingress protection | IP66 |
| Supported communication interface | Bluetooth/2.4 GHz Wi-Fi |
| Noise | <20 dB |
| Housing Material | Aluminum Alloy |
4020 X
HiBattery 4020 XÂ
4020 X Toolkit
4020 X + 1 Battery Module(8.04kWh)
HiBattery 4020 X
Battery *1
4020 X Toolkit
Battery Toolkit
4020 X + 2 Battery Module(12.06kWh)
HiBattery 4020 X
Battery *2
4020 X Toolkit
Battery Toolkit
Free-HMeter-CT-T120-RW *1
Free-Cable(5m) *1

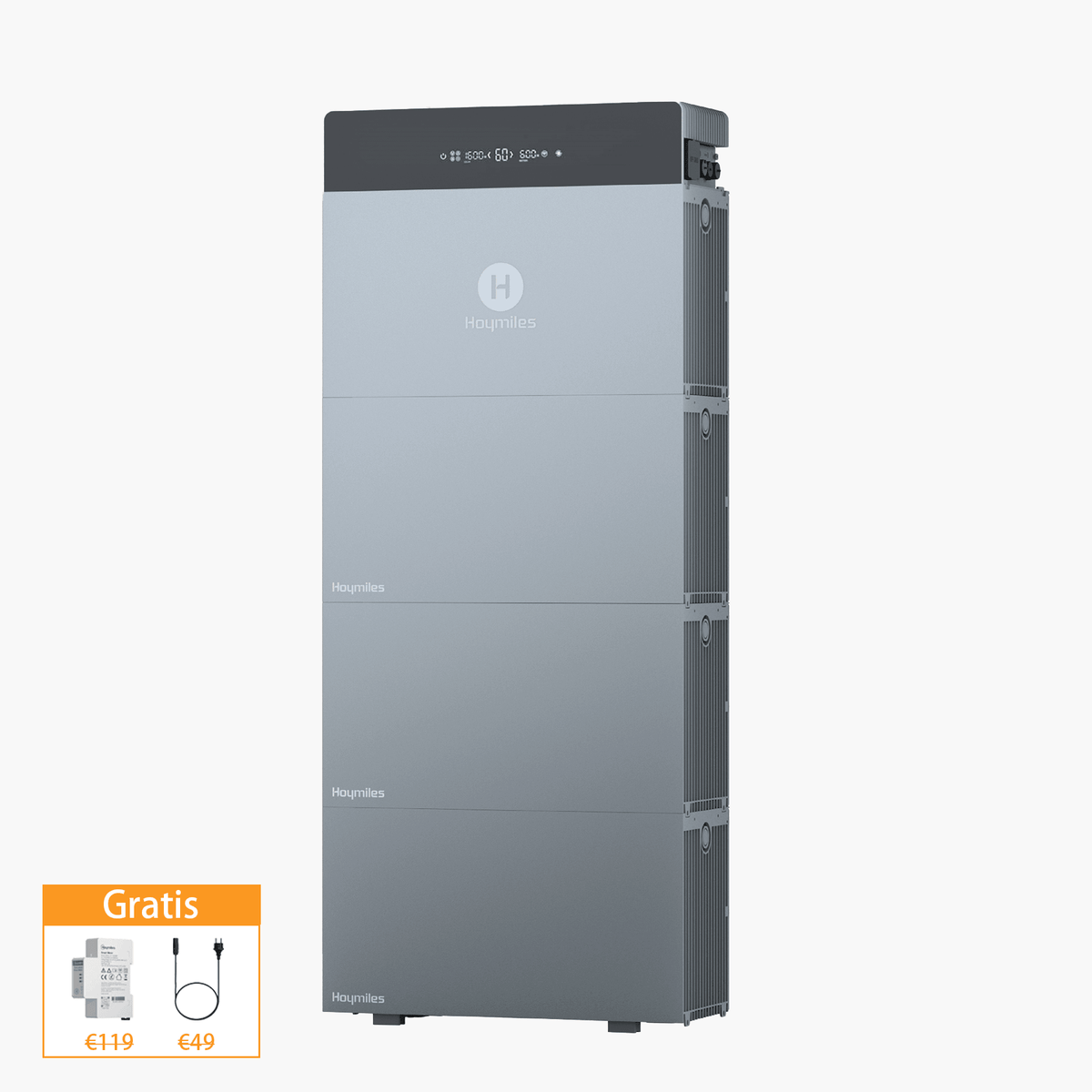

4020 X + 3 Battery Module(16.08kWh)
HiBattery 4020 X
Battery *3
4020 X Toolkit
Battery Toolkit
Free-HMeter-CT-T120-RWÂ *1
Free-Cable(5m) *1
Frequently Asked Questions
4020 X or 4020 AC, which is right for me?
HiBattery 4020 X is ideal for customers who:
- Want to connect solar panels directly to the battery
- Are building a new solar + storage system
- Want to add battery storage to an existing PV system without relying on a separate PV inverter
- Need flexible PV input with 4 MPPTs and up to 4,000W PV input
HiBattery 4020 AC is ideal for customers who:
- Already have a solar system with a PV inverter and want to add battery storage.
- Want a flexible installation without having to install the battery directly next to the PV panels or inverter.
- Want to place the battery in a suitable location inside the home, such as a utility room, garage, basement, or other appropriate room.
- Want to expand their existing solar system with battery storage without replacing their existing PV inverter.
Is professional installation required, or can I set it up myself?
It depends on the installation method you choose:
- Plug-and-Play installation (up to 800W on-grid output): No professional electrician is required. The HiBattery 4020 AC can be installed easily by connecting it to a suitable household outlet, subject to local regulations.
- Hardwired installation (up to 2500W output): A professional electrician is required. The installation must be carried out in accordance with applicable local electrical regulations and requirements.
How many batteries can I connect together for more storage?
HiBattery 4020 X and HiBattery 4020 AC both support expandable storage. You can connect up to 3 additional battery expansion modules, increasing the total capacity to a maximum of 16.08kWh.
How does Hoymiles build an ultimate safe energy storage system?
Hoymiles HiBattery delivers ultimate safety through a smart BMS, integrated fire safety system, pack-level DC/DC balancing, and IP66-rated protection for reliable operation in all environments.
Why are there two output power ratings (800 W and 2500 W)?
The available AC output depends on the installation method.
800W â Plug-and-Play installation via a standard household socket, subject to local regulations.
2500W â Professional installation via the household distribution board by a qualified electrician, where permitted by local regulations.
For professional installations that meet local requirements, the maximum output power can be increased to 2500 W in the S-Miles Home App.
How to enable Zero Export Mode?
You need a Hoymiles Smart Meter to enable Zero Export Mode in the Hoymiles app. By setting the export power to 0 W, your home energy system will automatically adjust the battery output to minimize power export to the grid.
For detailed instructions, please refer to the Zero Export Mode Setup Guide.
Is the HiBattery 4020 AC compatible with all Hoymiles microinverters?
Yes. The HiBattery 4020 AC is compatible with all Hoymiles microinverters and can be easily integrated into existing Hoymiles solar systems.
How to enable 2500W output power on HiBattery 4020 X / 4020 AC?
The 2500W output power is only available with a hardwired installation performed by a professional electrician.
After completing the installation, please send a photo of the correctly installed system to shop.support@hoymiles.com. Once we verify the installation, we will enable the permission for you to adjust the output power to 2500W in the S-Miles Home app.
Do I have to use Wi-Fi to use the HiBattery 4020 X / 4020 AC?
Yes, Wi-Fi is required for the initial setup. We recommend connecting the battery to the Hoymiles app via Wi-Fi to complete the setup and access all functions for better device management.
Bluetooth is also supported, but you must complete the initial setup via Wi-Fi first. After the setup is completed, you can keep the settings unchanged and use Bluetooth to connect to the battery.
Can I use the HiBattery 4020 AC / 4020 X without a solar system?
Yes. You can use the HiBattery 4020 AC / 4020 X without solar panels.
With AI-TOU, the battery can charge from the grid when electricity prices are lower and discharge when prices are higher, helping you reduce your electricity costs. It can also provide backup power when needed.
How is the battery monitored (app, LCD, smart home integration)?
HiBattery 4020 X/AC can be monitored through the Hoymiles S-Miles App, which allows you to track real-time energy charging, usage, battery status, and system performance from your smartphone. It also supports smart home integration with platforms like Shelly and Everhome.
Who manufactures the battery, and do they have a good track record?
HiBattery 4020 is designed and manufactured in Hoymiles self-owned production facilities. Each battery is produced in-house under strict quality control standards to ensure consistent performance, safety, and long-term reliability.
