HiBattery 4020 AC Solar Battery
HiBattery 4020 AC Solar Battery
Get Extra 10% Off with Code: HBNEW
0% VAT in Germany only. For other countries, please check VAT Rate by Country
4020 X and 4020 AC will be shipped within 1–3 business days. Battery modules are expected to ship starting September 18.
Features at a Glance
Features at a Glance
Plug-and-play design
4.02kWh capacity, up to 16.08kWh
10-year quality warranty
Max. 2500W inverter input power
800VA on-grid AC output
AI smart TOU mode
Max. 2500W Output Power (Hardwired)
Couldn't load pickup availability
Feature Highlights
Easy Solar Energy Storage for Every Home
1*HiBattery 4020 AC
For 800-2000W Solar System
ldeal for studio flats or 1-2 person households for everyday outages or off-peak energy savings.
battery capacity
Family
max. annual savings
Annual Usage
1*HiBattery 4020 AC + 2*Battery Modules
For 6000W Existing Rooftop System
Designed for families of 3-4 in a semi-detached or larger home to cut your energy bills further.
battery capacity
Family
max. annual savings
Annual Usage
1*HiBattery 4020 AC + 3*Battery Modules
For 10kW Existing Rooftop System
For larger homes or high-demand households ready to take control for a solar-first lifestlye.
battery capacity
Family
max. annual savings
Annual Usage
With a HiBattery 4020 AC and 4×500W PV modules, the system generates ~1,460 kWh/year (≈4 kWh/day), achieves up to 90% self-consumption, and saves ~€584/year at €0.40/kWh.
*Estimated savings are for reference only. Actual results may vary based on electricity rates, usage patterns and local policies.

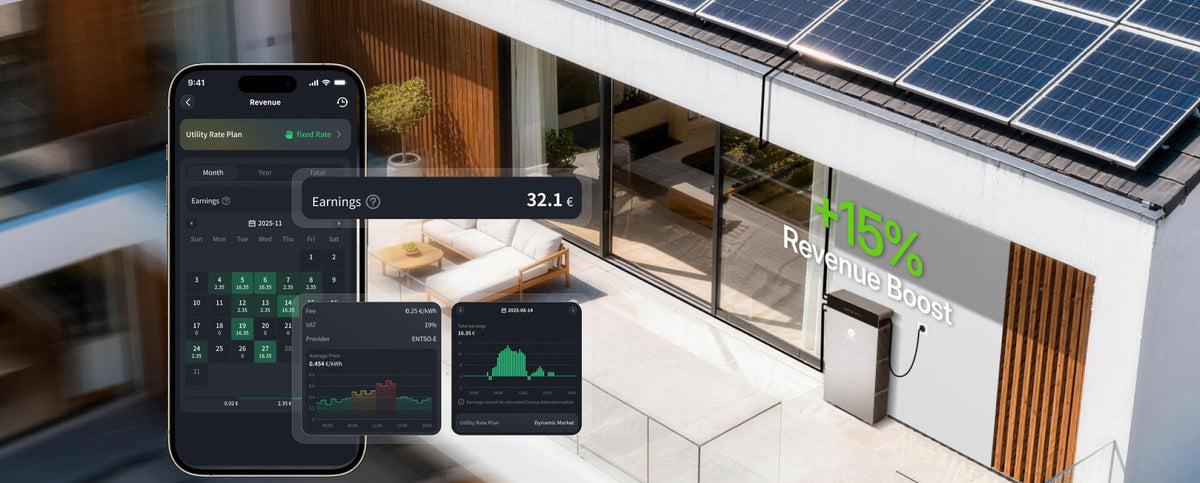

Hoymiles AI-EMS for Extra 15% Revenue Boost
Hoymiles AI-EMS is a smart energy management system that optimizes solar generation, storage, and usage in real time. Using AI-driven TOU optimization and load shifting, it maximizes self-consumption and energy value. This helps improve system efficiency and can deliver up to a 15% revenue boost by using energy at the most valuable times.
Reliable Performance, Built to Last

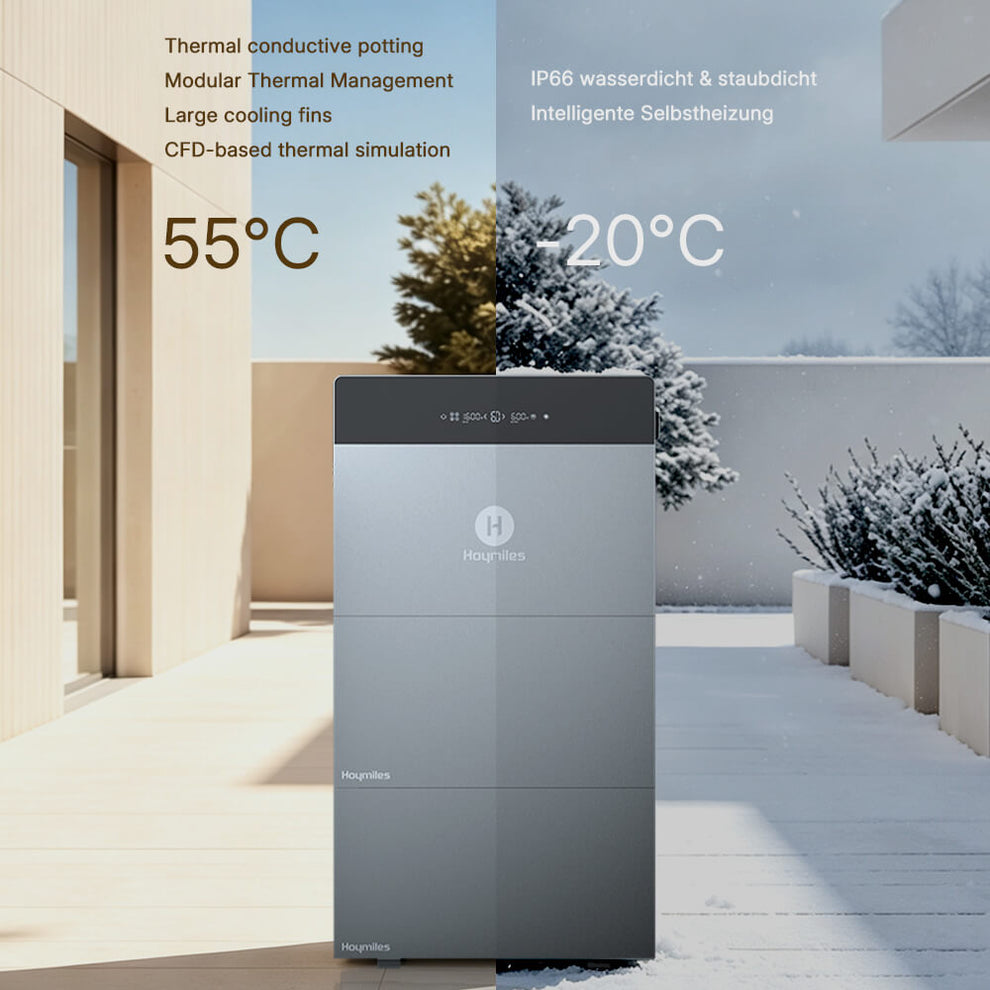

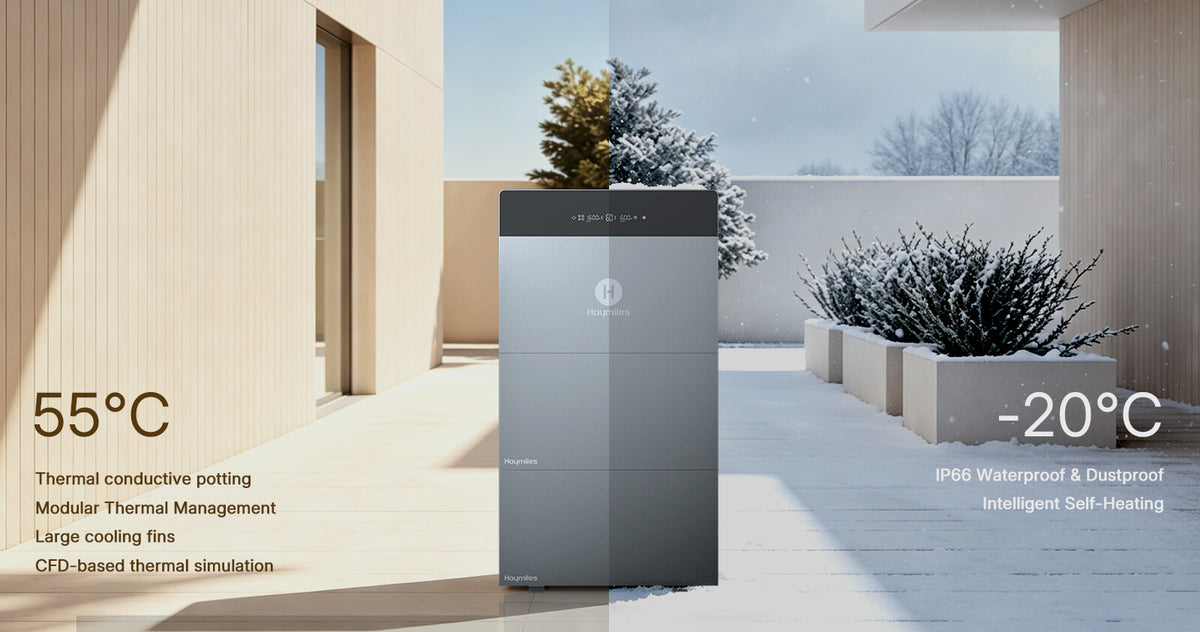

Stable Output in Any Environment

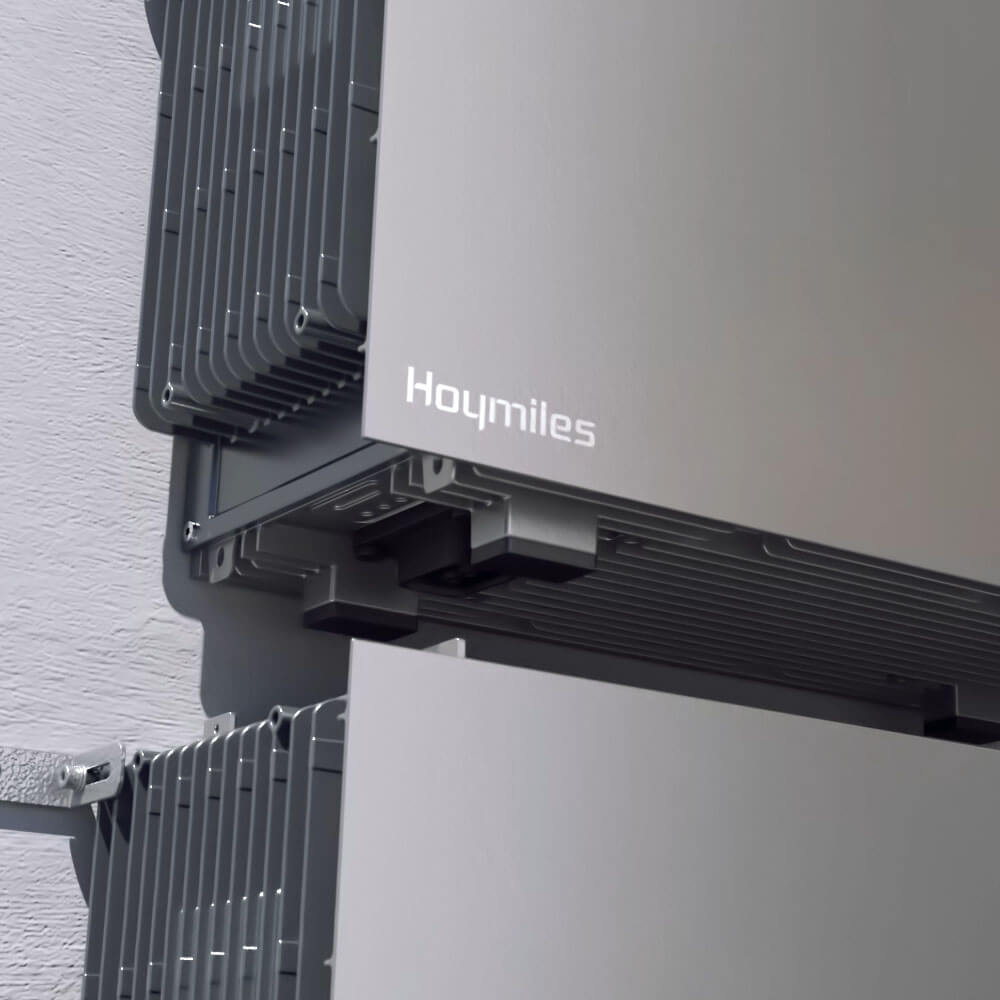

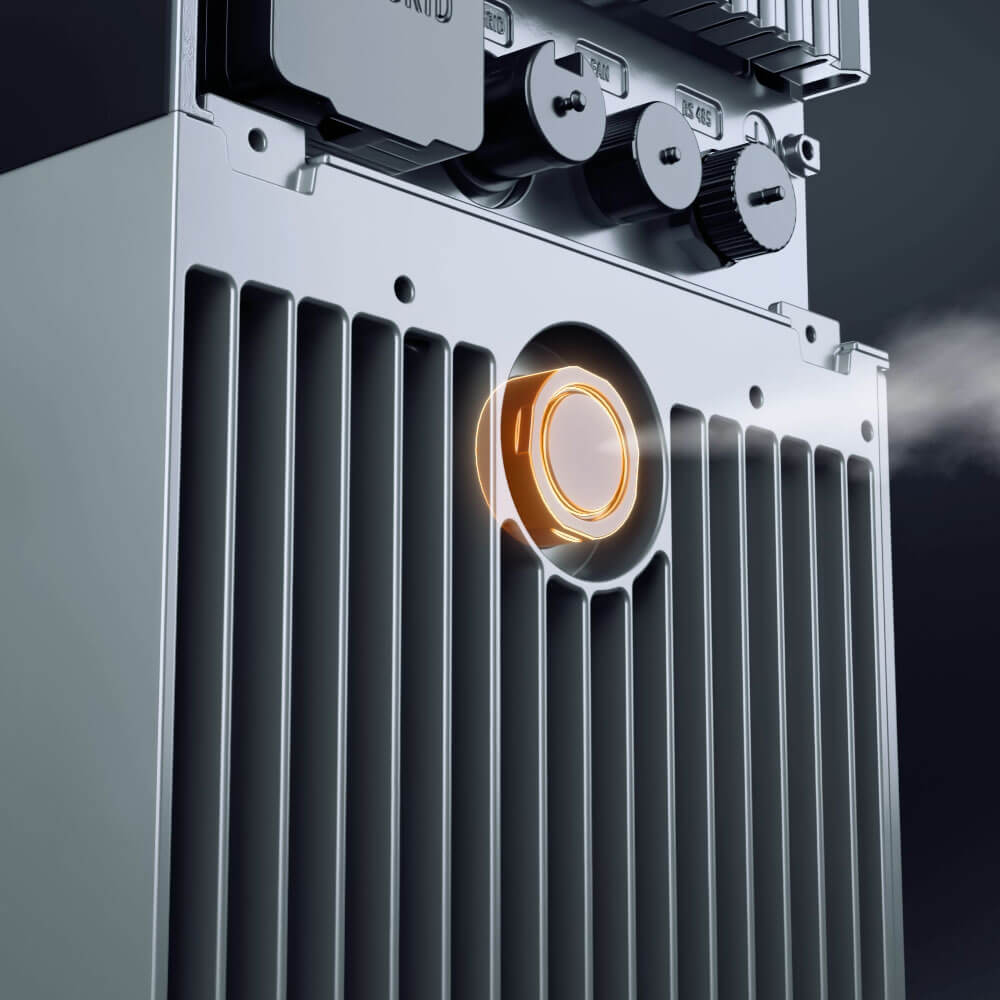

HiBattery 4020 AC ensures reliable performance with IP66 protection. In summer, thermal conductive potting, large cooling fins, and CFD-optimized design improve heat dissipation with optional fan cooling. In winter, below 0°C, self-heating activates automatically to maintain optimal battery conditions and stable operation from -20°C to 55°C year-round.
Set Up With No Worry

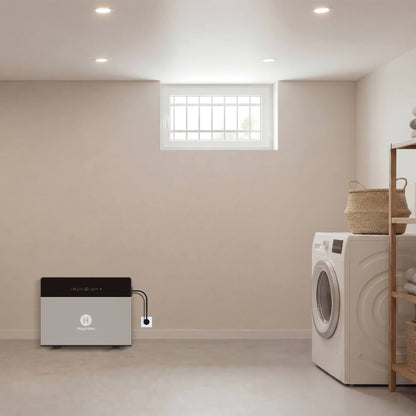

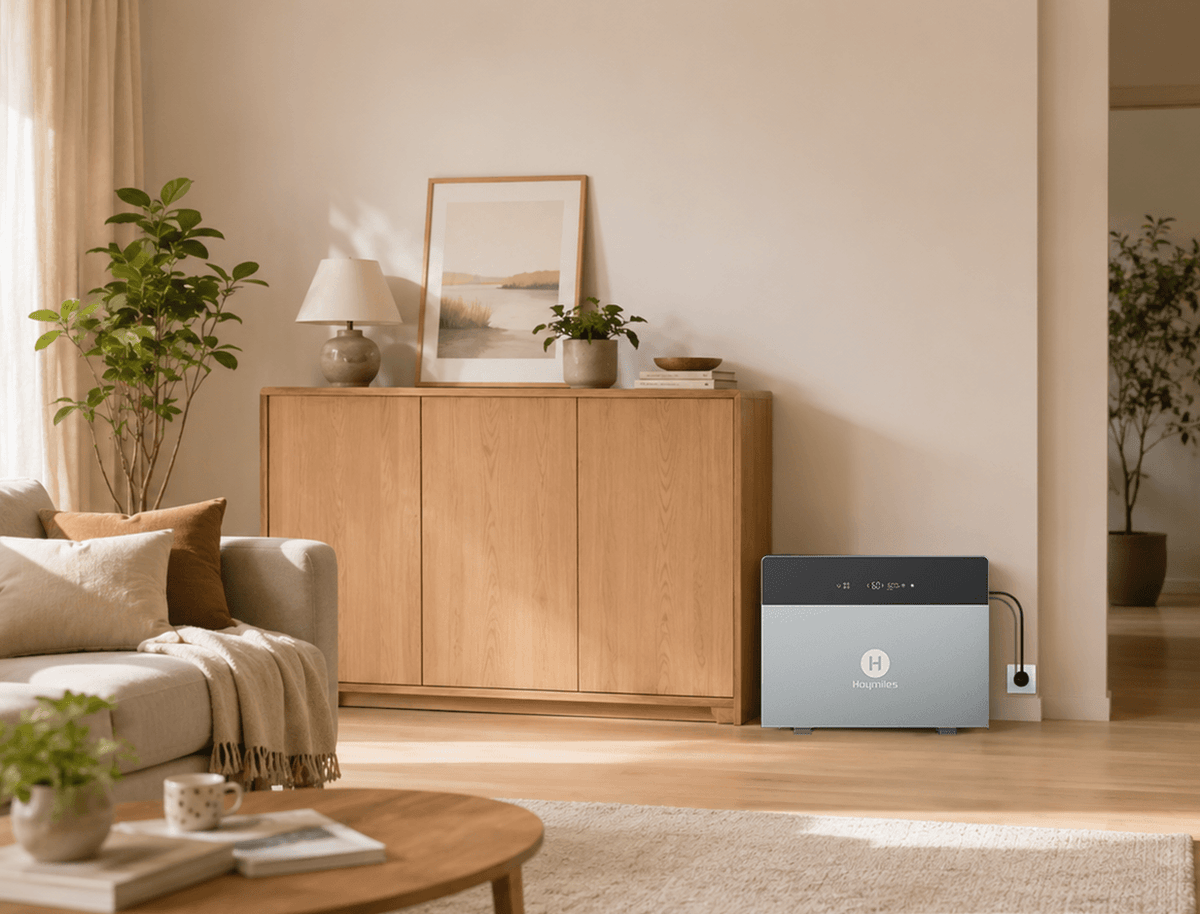

Plug-and-Play Installation

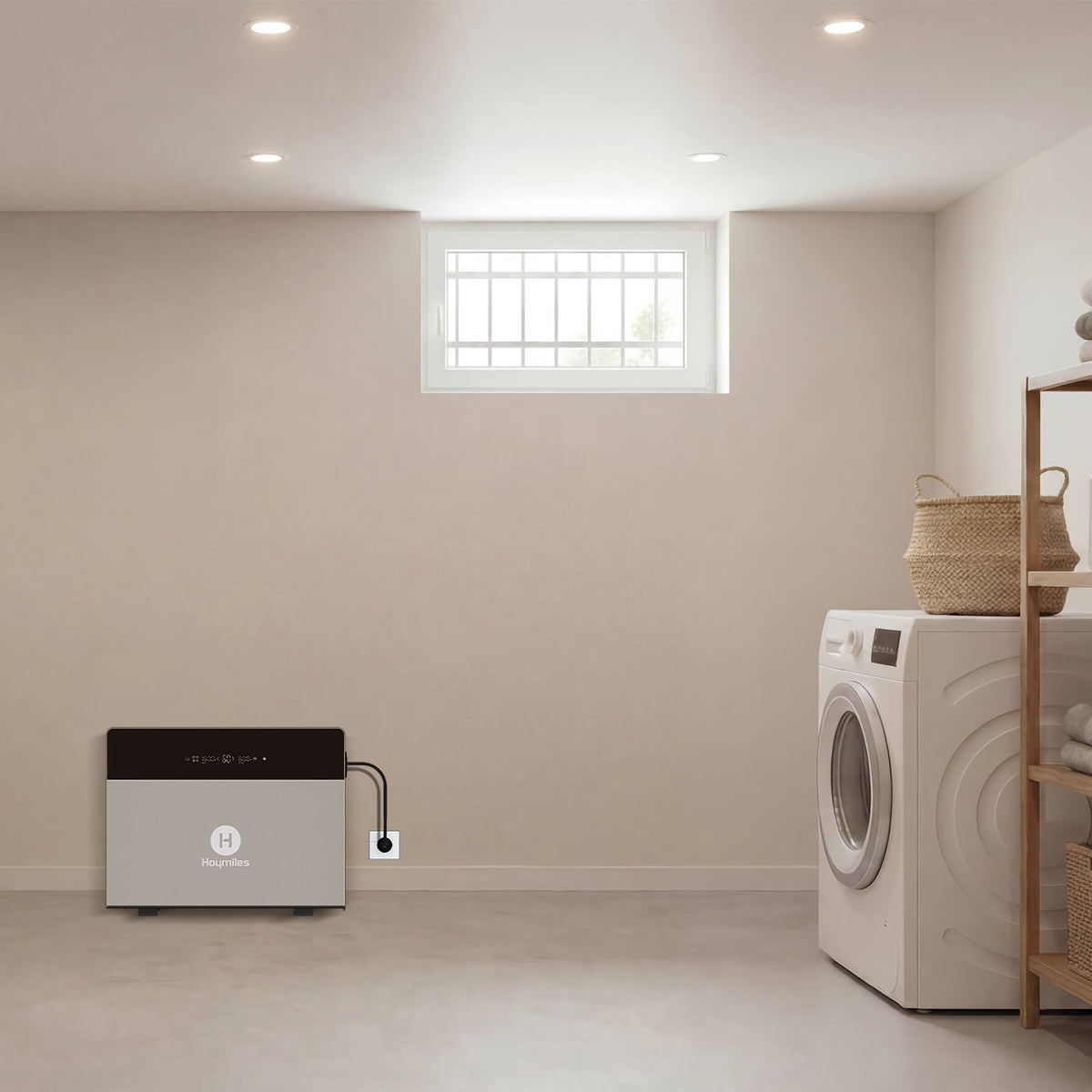

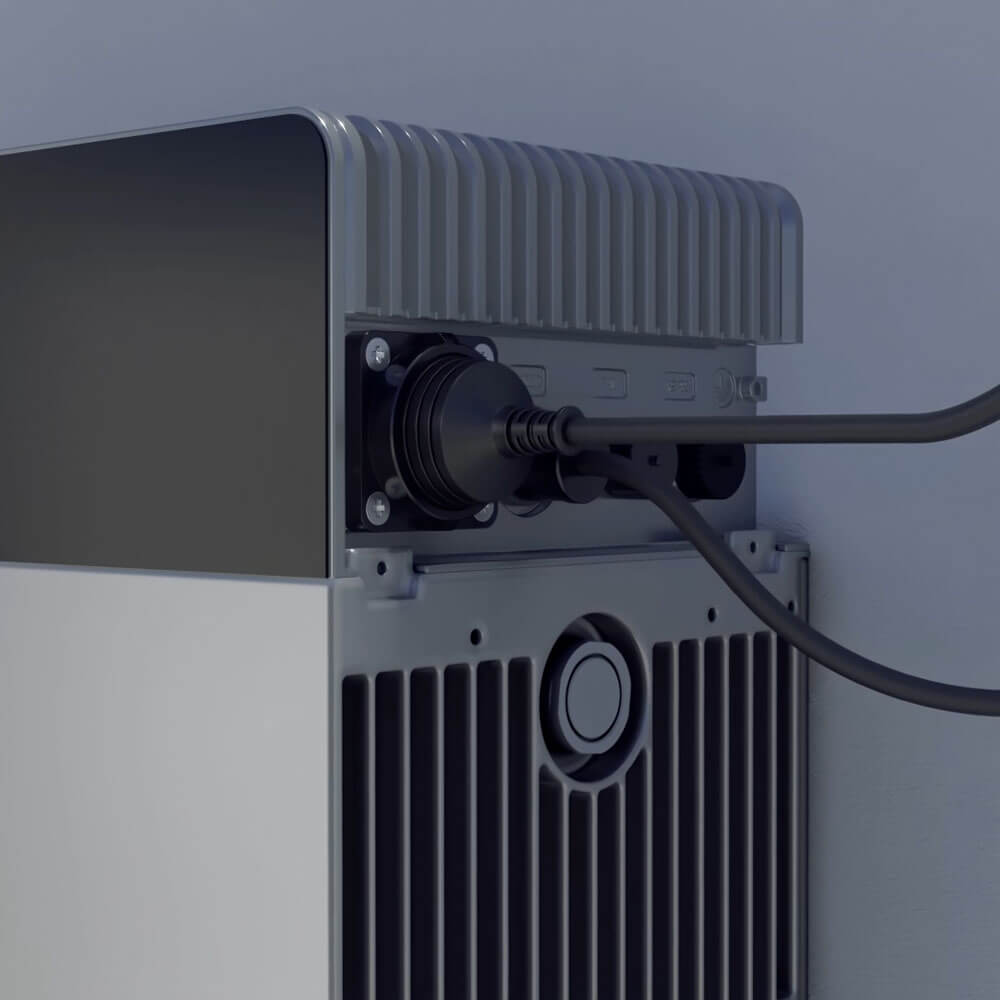

HiBattery 4020 AC uses a plug-and-play AC-coupled design, allowing it to be easily connected through any standard socket and installed wherever needed in your home. With no complex rewiring required, it integrates seamlessly with existing solar systems, enabling fast setup and helping you start storing and using energy right away while reducing installation time and cost.
installation fee
100% Compatibility
HiBattery 4020 AC is fully AC-compatible, designed to work seamlessly with all major inverters and standard household sockets. It integrates easily into both new and existing solar systems, ensuring flexible installation without system modifications or complex setup.
compatible with solar systems
Installation Support Service
We provide professional support to ensure a smooth installation and seamless user experience. Our expert team is available via email, online chat, and phone to guide you step by step—from setup to everyday use—helping you get the most out of your system with confidence. Have any questions?
support service
More About Our Product
| Specification | Details |
|---|---|
| Battery Capacity | 4.02kWh |
| On-Grid Port | Max Input Power | 2500W |
| On-Grid Port | Max Output Power | 800W (Plug-in) / 2500W (Hardwired) |
| On-Grid Port | Rated output power | 800W |
| Off-Grid Port | Max Input Power | 2500W |
| Off-Grid Port | Max Output Power | 2500W |
| Max Charge and Discharge Power | 2000W |
| Battery Type | LiFePO4 |
| Life Cycles | ≥8000@70% SOH |
| Operating Temperature | -20 to 55℃ |
| Weight | 42kg |
| Dimensions | 520 × 384 × 199mm |
| Warranty | 10 years |
| Ingress protection | IP66 |
| Supported communication interface | Bluetooth/2.5 GHz Wi-Fi |
| Noise | <20 dB |
| Housing Material | Aluminum Alloy |
4020 AC
HiBattery 4020 AC
4020 AC Toolkit
4020 AC + 1 Battery Module(8.04kWh)
HiBattery 4020 AC
Battery *1
4020 AC Toolkit
Battery Toolkit
4020 AC + 2 Battery Module(12.06kWh)
HiBattery 4020 AC
Battery *2
4020 AC Toolkit
Battery Toolkit
Free-HMeter-CT-T120-RW *1
4020 AC + 3 Battery Module(16.08kWh)
HiBattery 4020 AC
Battery *3
4020 AC Toolkit
Battery Toolkit
Free-HMeter-CT-T120-RW *1
Frequently Asked Questions
4020 X or 4020 AC, which is right for me?
HiBattery 4020 X is ideal for customers who:
- Want to connect solar panels directly to the battery
- Are building a new solar + storage system
- Want to add battery storage to an existing PV system without relying on a separate PV inverter
- Need flexible PV input with 4 MPPTs and up to 4,000W PV input
HiBattery 4020 AC is ideal for customers who:
- Already have a solar system with a PV inverter and want to add battery storage.
- Want a flexible installation without having to install the battery directly next to the PV panels or inverter.
- Want to place the battery in a suitable location inside the home, such as a utility room, garage, basement, or other appropriate room.
- Want to expand their existing solar system with battery storage without replacing their existing PV inverter.
Is professional installation required, or can I set it up myself?
It depends on the installation method you choose:
- Plug-and-Play installation (up to 800W on-grid output): No professional electrician is required. The HiBattery 4020 AC can be installed easily by connecting it to a suitable household outlet, subject to local regulations.
- Hardwired installation (up to 2500W output): A professional electrician is required. The installation must be carried out in accordance with applicable local electrical regulations and requirements.
How many batteries can I connect together for more storage?
HiBattery 4020 X and HiBattery 4020 AC both support expandable storage. You can connect up to 3 additional battery expansion modules, increasing the total capacity to a maximum of 16.08kWh.
How does Hoymiles build an ultimate safe energy storage system?
Hoymiles HiBattery delivers ultimate safety through a smart BMS, integrated fire safety system, pack-level DC/DC balancing, and IP66-rated protection for reliable operation in all environments.
Why are there two output power ratings (800 W and 2500 W)?
The available AC output depends on the installation method.
800W – Plug-and-Play installation via a standard household socket, subject to local regulations.
2500W – Professional installation via the household distribution board by a qualified electrician, where permitted by local regulations.
For professional installations that meet local requirements, the maximum output power can be increased to 2500 W in the S-Miles Home App.
How to enable Zero Export Mode?
You need a Hoymiles Smart Meter to enable Zero Export Mode in the Hoymiles app. By setting the export power to 0 W, your home energy system will automatically adjust the battery output to minimize power export to the grid.
For detailed instructions, please refer to the Zero Export Mode Setup Guide.
Is the HiBattery 4020 AC compatible with all Hoymiles microinverters?
Yes. The HiBattery 4020 AC is compatible with all Hoymiles microinverters and can be easily integrated into existing Hoymiles solar systems.
How to enable 2500W output power on HiBattery 4020 X / 4020 AC?
The 2500W output power is only available with a hardwired installation performed by a professional electrician.
After completing the installation, please send a photo of the correctly installed system to shop.support@hoymiles.com. Once we verify the installation, we will enable the permission for you to adjust the output power to 2500W in the S-Miles Home app.
Do I have to use Wi-Fi to use the HiBattery 4020 X / 4020 AC?
Yes, Wi-Fi is required for the initial setup. We recommend connecting the battery to the Hoymiles app via Wi-Fi to complete the setup and access all functions for better device management.
Bluetooth is also supported, but you must complete the initial setup via Wi-Fi first. After the setup is completed, you can keep the settings unchanged and use Bluetooth to connect to the battery.
Can I use the HiBattery 4020 AC / 4020 X without a solar system?
Yes. You can use the HiBattery 4020 AC / 4020 X without solar panels.
With AI-TOU, the battery can charge from the grid when electricity prices are lower and discharge when prices are higher, helping you reduce your electricity costs. It can also provide backup power when needed.
How is the battery monitored (app, LCD, smart home integration)?
HiBattery 4020 X/AC can be monitored through the Hoymiles S-Miles App, which allows you to track real-time energy charging, usage, battery status, and system performance from your smartphone. It also supports smart home integration with platforms like Shelly and Everhome.
Who manufactures the battery, and do they have a good track record?
HiBattery 4020 is designed and manufactured in Hoymiles self-owned production facilities. Each battery is produced in-house under strict quality control standards to ensure consistent performance, safety, and long-term reliability.
Downloads
Hoymiles_Datasheet_HB-4020-AC_Global_EN_REV1.1
Hoymiles_Datasheet_HB-4020-AC_Global_DE_REV1.1
Hoymiles_Datasheet_HB-4020-AC_Global_FR_REV1.1
Hoymiles_Datasheet_HB-4020-AC_Global_NL_REV1.1
User_Manual_HB-4020-AC_EN_REV1.2
User_Manual_HB-4020-AC_DE_REV1.2
User_Manual_HB-4020-AC_FR_REV1.2
User_Manual_HB-4020-AC_NL_REV1.2
Hoymiles_HiBattery_4020_Series_Warranty_Terms_Conditions_EU.2026006
